Pro-Lok Spring frame system
shock-proof cases

- Standard spring system shock-proof rack

- 4 heavy duty spring system (8 springs in SF models) construction on the inside
   bottom rack to create the “shock protection”

- 9mm plywood construction with laminated plastic covering

- 35mm × 35mm aluminum section

- Heavy duty corners, heavy duty T Brackets

- Medium butterfly latches, medium recessed handles

- Attachment rails (front / back)

- Complete rack mounting component: washers, nuts and screws

- Front / back covers

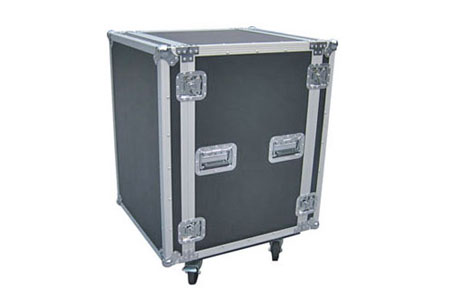

PLOK-S4-SPC16U

PLOK-S4-SPC16U

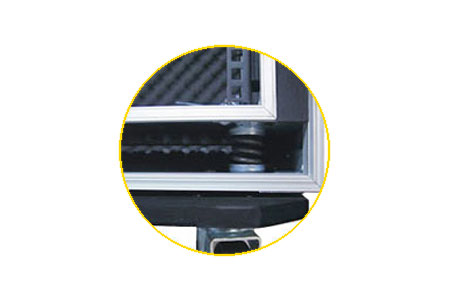

SPRING FRAME SYSTEM IMAGE

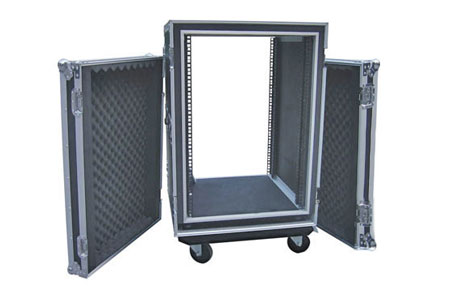

Pro-lok Spring frame system view

PLOK-S4-SPC16U

PLOK-S4-SPC16U

19" Spring frame system
shock-proof cases specifications

Model Depth
(mm)
Handles Butterfly
Latches
4" Casters
(2+2 w/brakes)
External
Dimensions (mm)
Packaging
CBM
Weight
(kg)
PLOK-S4-SPC12U5204 8 5 603x700x6570.33645
PLOK-S4-SPC14U52048 4 603x700x7460.37948.5
PLOK-S4-SPC16U52048 4 603x700x8350.42152.5
PLOK-S4-SPC18U52048 4 603x700x9240.46356.5
PLOK-S4-SPC20U52048 4 603x700x10130.50661
PLOK-S4-SPC22U52048 4 603x700x11020.54866

19" Compact spring frame system
shock-proof cases cases specifications

The SF models use of 8 heavy duty springs in the spring frame system construction.

Model Depth
(mm)
Handles Butterfly
Latches
4" Casters
(2+2 w/brakes)
External
Dimensions (mm)
Packaging
CBM
Weight
(kg)
PLOK-SF-SPC12U5204 4 4 640x608x6740.31944
PLOK-SF-SPC14U52044 4 640x608x7630.35847
PLOK-SF-SPC16U5204 4 4 640x608x8520.39750
PLOK-SF-SPC18U5204 4 4 640x608x9410.43753
PLOK-SF-SPC20U5204 4 4 640x608x10300.47656.5
PLOK-SF-SPC22U5204 4 4 640x608x11190.51560
PROLOK CASE COMPONENTS

FLIGHT CASE COMPONENTS
