Pro-Lok Shock mount racks

- 19″ standard shock-proof rack - 20", 24" or 28" deep

- “Case within a case” construction with thick, dense rubber insulation

- 9mm (.35") plywood construction with laminated plastic covering

- 35mm (1.38") x 35mm (1.38") aluminum extrusions

- Heavy duty corners, heavy duty T Brackets

- Medium butterfly latches, medium recessed handles

- Attachment rails (front/back)

- Complete rack mounting component: washers, nuts and screws

-Front / back covers

- Colors: BK: Black (standard) BL: Blue / RD: Red / YW: Yellow

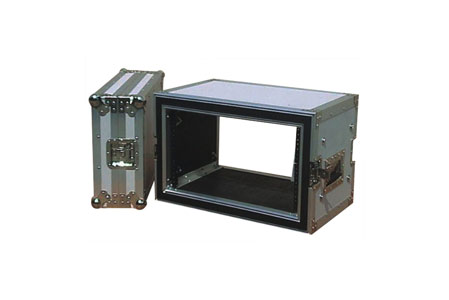

PLOK-4USHW

PLOK-4USHW

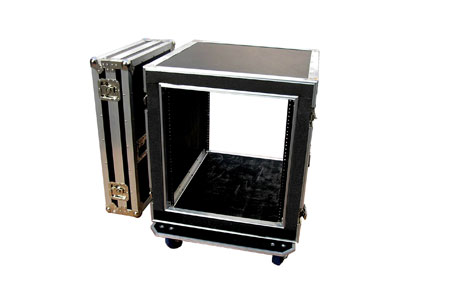

PLOK-12USHW24W

PLOK-16USHW

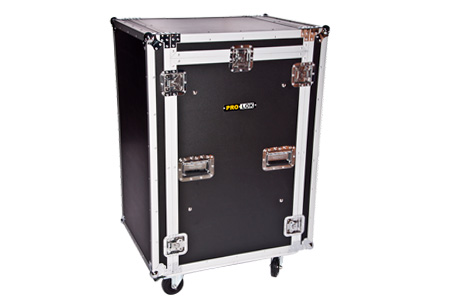

PLOK-18USHW24W

PLOK-18USHW24W

19" (20" deep) Shock mount racks specifications

Model	Depth (mm)	Handles	Butterfly Latches	4" Casters (2+2 w/brakes)	External Dimensions (mm)	Packaging CBM	Weight (kg)

Model	Depth (mm)	Handles	Butterfly Latches	4" Casters (2+2 w/brakes)	External Dimensions (mm)	Packaging CBM	Weight (kg)
PLOK-4USHW	520	2	4	-	601x700x282	0.155	18
PLOK-6USHW	520	2	4	4	601x700x371	0.197	21
PLOK-8USHW	520	2	4	4	601x700x460	0.240	24
PLOK-10USHW	520	4	8	4	601x700x549	0.262	35
PLOK-12USHW	520	4	8	4	601x700x638	0.324	38
PLOK-14USHW	520	4	8	4	601x700x727	0.366	41.5
PLOK-16USHW	520	4	8	4	601x700x816	0.408	45
PLOK-18USHW	520	4	8	4	601x700x905	0.451	49
PLOK-20USHW	520	4	8	4	601x700x994	0.493	53.5

19" (24" deep) Shock mount racks specifications

Model	Depth (mm)	Handles	Butterfly Latches	4" Casters (2+2 w/brakes)	External Dimensions (mm)	Packaging CBM	Weight (kg)

Model	Depth (mm)	Handles	Butterfly Latches	4" Casters (2+2 w/brakes)	External Dimensions (mm)	Packaging CBM	Weight (kg)
PLOK-2USHW24W	520	2	4	-	601x700x282	0.155	18
PLOK-4USHW24W	520	2	4	-	601x700x282	0.155	18
PLOK-6USHW24W	520	2	4	4	601x700x371	0.197	21
PLOK-8USHW24W	520	2	4	4	601x700x460	0.240	24
PLOK-10USHW24W	520	4	8	4	601x700x549	0.262	35
PLOK-12USHW24W	520	4	8	4	601x700x638	0.324	38
PLOK-14USHW24W	520	4	8	4	601x700x727	0.366	41.5
PLOK-16USHW24W	520	4	8	4	601x700x816	0.408	45
PLOK-18USHW24W	520	4	8	4	601x700x905	0.451	49
PLOK-20USHW24W	520	4	8	4	601x700x994	0.493	53.5

28" (24" deep) Shock mount racks specifications

Model	Handles	Butterfly Latches	4" Casters (2+2 w/brakes)	External Dimensions (mm)
PLOK-12USHW-28W	4	8	4	594x891x640
PLOK-16USHW-28W	4	8	4	594x891x818
PLOK 16USH-28MIXW	4	8	4	594x891x947
PLOK-18USHW-28W	4	8	4	594x891x907

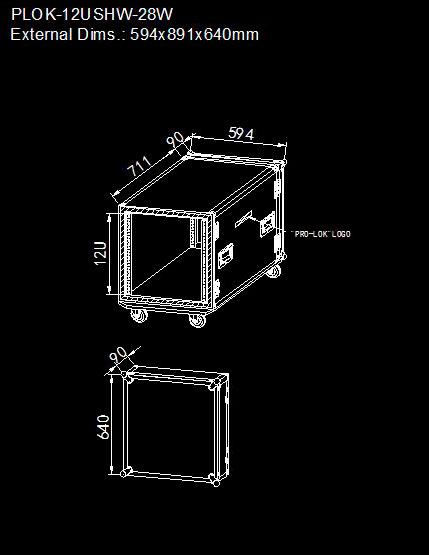

PLOK-12USHW-28W DIMENSIONS

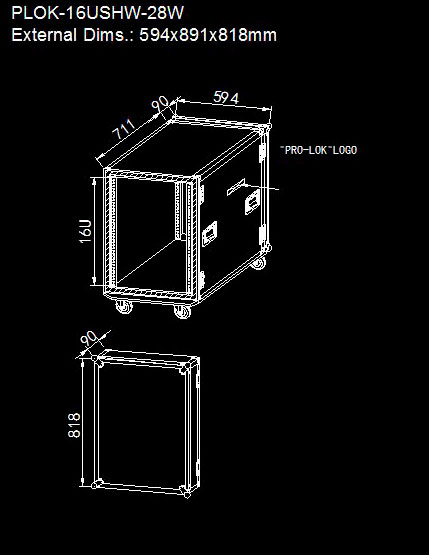

PLOK-16USHW-28W DIMENSIONS

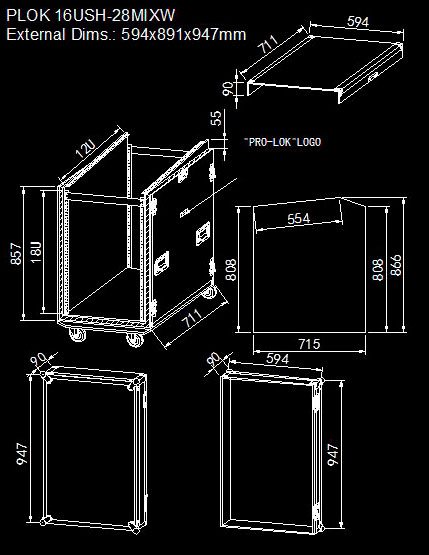

PLOK 16USH-28MIXW DIMENSIONS

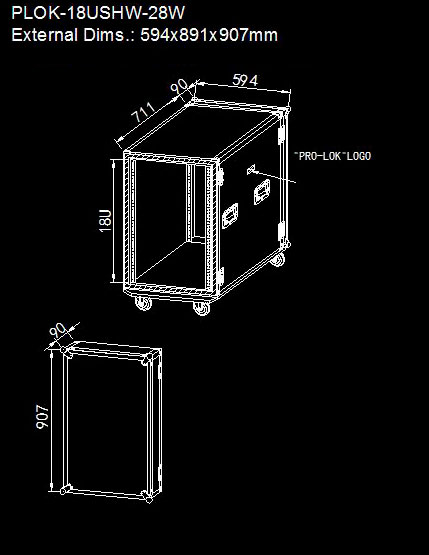

PLOK-18USHW-28W DIMENSIONS

PROLOK CASE COMPONENTS

FLIGHT CASE COMPONENTS

Click here to see all the options available.

Pro-Lok Product Line Catalogs
Click each one to download.

Prolok bags catalog

Prolok cables catalog

prolok racks catalog

Prolok stands catalog
